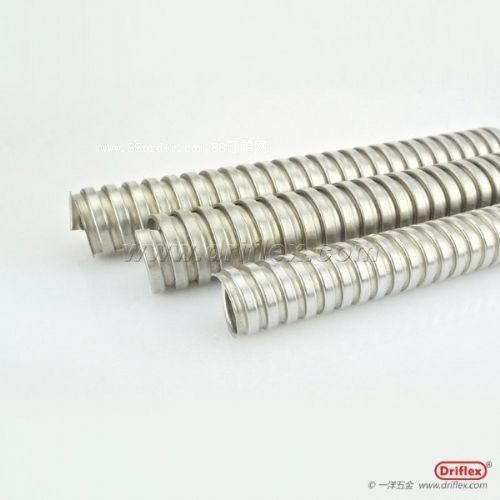

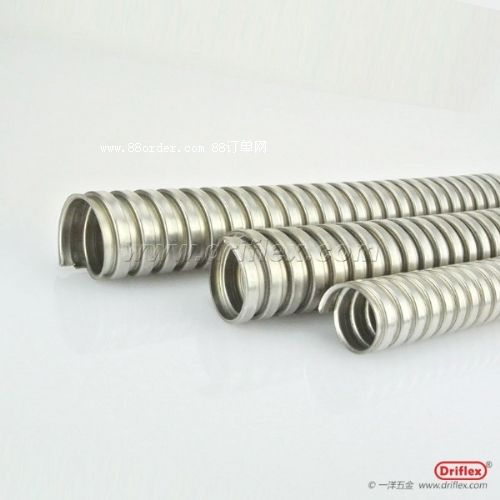

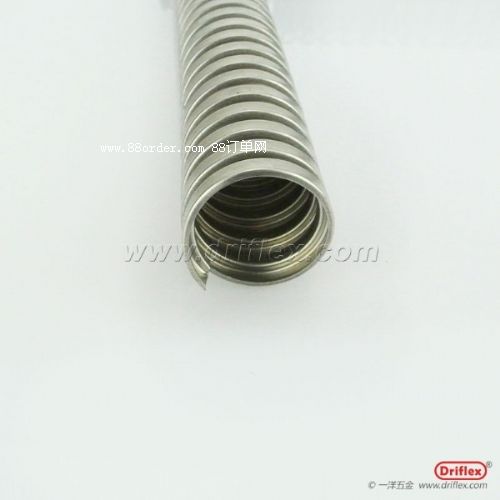

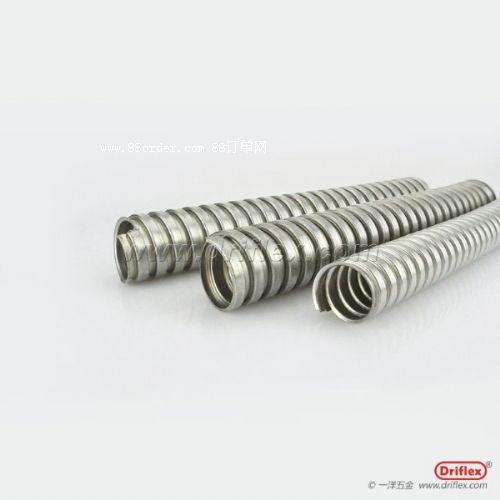

不銹鋼單勾軟管

model: ss-12

deｓｃｒｉｐｔion:

不銹鋼制成,結(jié)構(gòu)牢固,絕緣性能和防水性能。撓性好，高抗拉、抗破環(huán)性強、抗疲勞性能高。 耐高溫、耐沖擊、耐腐蝕強，可抵抗不當扭轉(zhuǎn)損壞等特點。

part no

normial size

inner diameter

mm

outside diameter

mm

o.d after pvc coated

length of each

roll

interlocked

squarelocked

m

ss-10

3/8"

12.5

15.7

18.0

16.6

50

ss-11

1/2"

15.7

19.1

21.3

20.0

50

ss-12

3/4"

20.8

24.3

26.7

25.5

50

ss-13

1"

26.0

30.0

33.2

31.6

30

ss-14

1-1/4"

35.0

40.0

42.2

42.0

30

ss-15

1-1/2"

40.0

45.0

48.0

47.0

20

ss-16

2"

51.0

56.0

59.6

59.0

10
